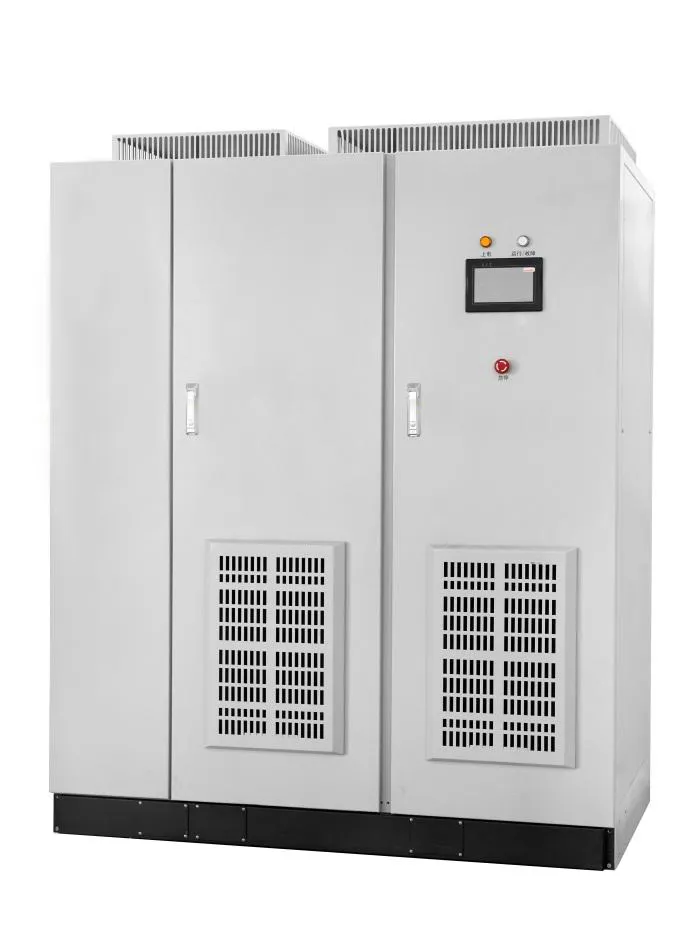

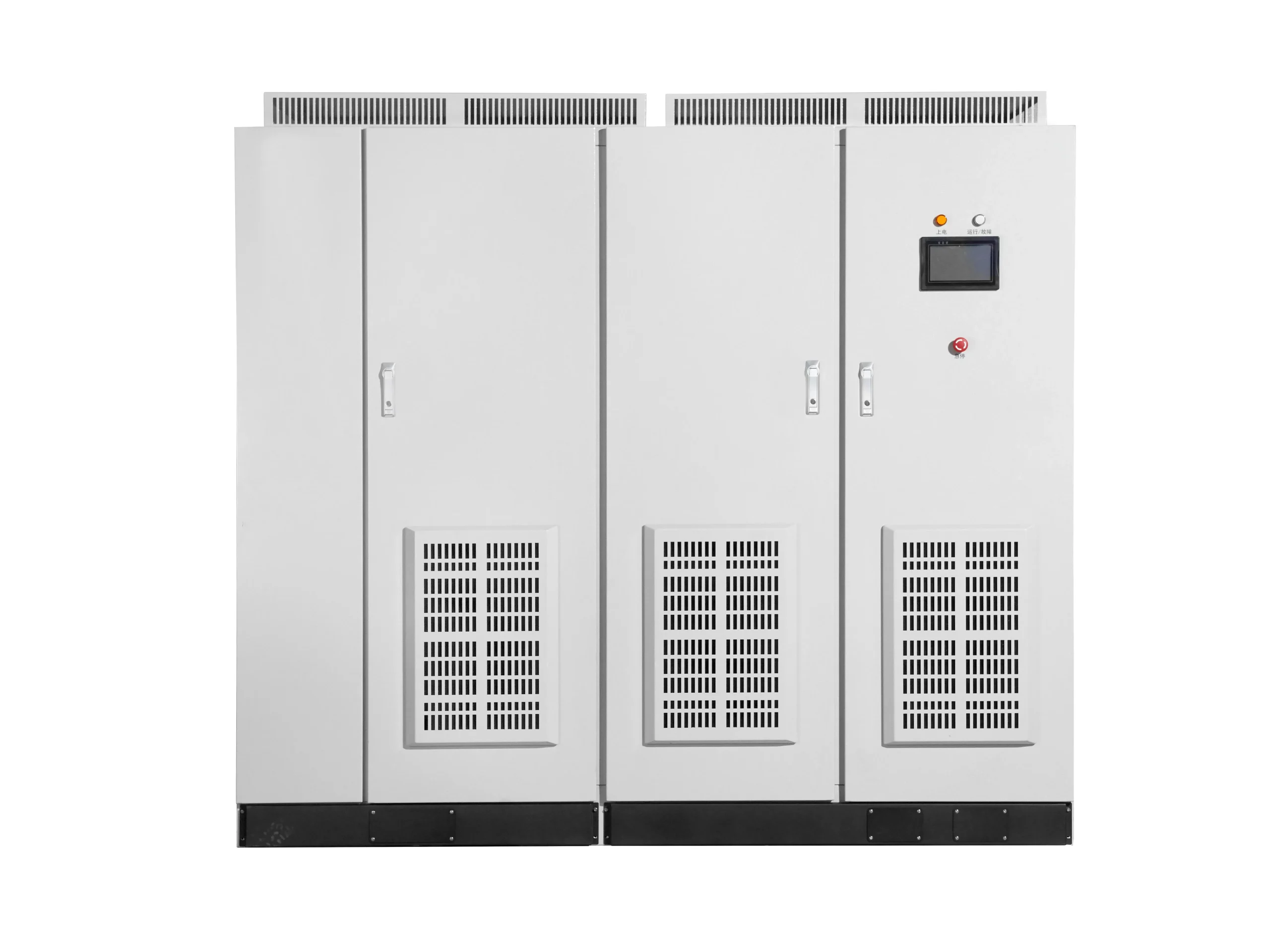

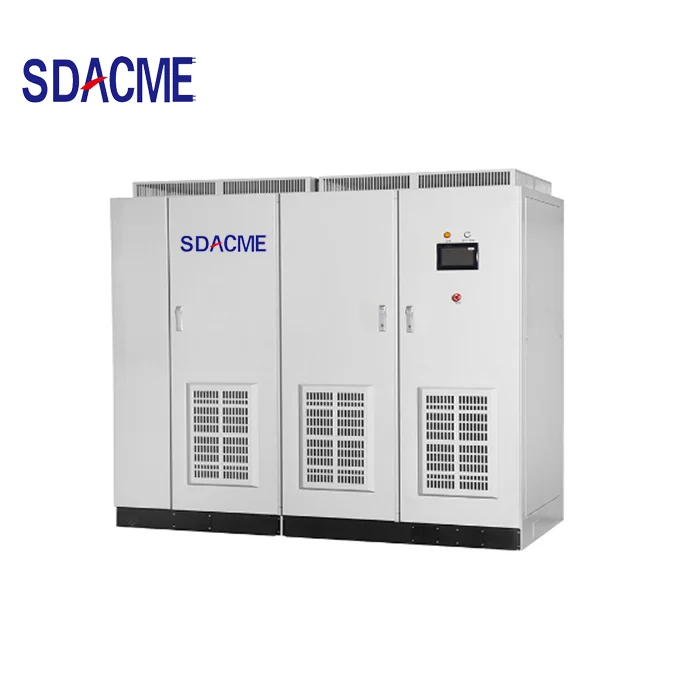

Bidirectional dc power supply

Application area

l Electric vehicle motor and controller testing

l Electric vehicle transmission system and powertrain system testing

l Fuel cell testing

l Motor

l Charging station and charging pile test

l Electric drive system test

l Energy storage system converter test

l Charging and discharging tests for capacitors and supercapacitors

l Battery pack and battery pack charge and discharge test

Product Features

(1) Voltage up to 1000V, single machine current – 1000A~+1000A, power 40~500kW

(2) Power grid feedback function: It has both power and load characteristics, and in addition to high-power DC power supply performance, it realizes the load function of automatic energy feedback to the power grid, with outstanding advantages of energy conservation, consumption reduction, and green environmental protection

(3) Adopt high-frequency PWM rectification and bidirectional DCDC technology, pure digital control, strong function, and high reliability

(4) CC, CV, and CP output modes

(5) Precharge function

(6) Photovoltaic simulation function

(7) Battery simulation (internal resistance mode) function, which can simulate the output characteristics of lithium batteries, lead-acid batteries, and nickel hydrogen batteries (optional):

(8) Emergency stop function

(9) Waveform editing, storage, and output functions (optional)

(10) Multiple protection functions: output undervoltage, phase loss, output overvoltage, IGBT overheating, IGBT overcurrent, over temperature protection, short circuit current limiting protection

(11) Communication and remote control function: standard configuration RS485, RS232, CAN (optional)

Typical Applications

Application 1: New Energy Vehicle Motor Towing and Electric Drive Test

• Towing motors have different voltage levels
• The traction motor has the same voltage level
• Dynamometer platform
• Application 2: Charging pile test: simulating power battery characteristics
• Application 1: Battery pack formation test


  Technical parameter

  Model	ACME800-100	ACME800-200	ACME800-300	ACME800-500	ACME800-600	ACME800-800
  Rated power	60kW	60kW	90kW	160kW	250kW	350kW
  Peak power	90kW	90kW	135kW	210kW	330kW	450kW
  Basic function
  Output function	Provide various specifications of DC signals
  Isolation function	Built-in isolation transformer
  Wiring mode	Input terminal: three-phase three-wire
  Output parameters
  Output mode	CV、CC、CP
  Voltage range	24.0-800.0VDC
  Rated current	±(0-100)A	±(0-200)A	±(0-300)A	±(0-500)A	±(0-600)A	±(0-800)A
  Peak current	±150A	±300A	±450A	±650A	±800A	±1000A
  Voltage accuracy	0.1%FS   resolution：0.1V
  Current accuracy	0.1%FS   resolution：0.1A
  Power accuracy	0.2%FS   resolution：10W
  Ripple (Vpp)	0.2%FS
  Transient recovery time	5ms
  Voltage rise time	10ms(10%load～90%load)
  Current rise time	10ms(-90%load～+90%load)
  Source voltage effect	≤0.1%
  Load effect	≤0.1%
  Output function
  Display	Large screen color touch screen
  Waveform editing	Voltage and current slope, step, cycle control, jump control, battery discharge curve simulation
  Emergency stop function	Emergency stop button
  Start and stop control	Separate control of discharge, charging, and stopping
  BMS interface function	BMS communication commands and trigger conditions can be freely set for timely protection
  Soft start	Precharge function
  Protection function
  Protection	IGBT overcurrent, IGBT overheating, transformer overheating, output overvoltage/undervoltage, overcurrent, overload, short circuit
  Remote interface
  Communication interface	Standard: RS485 Optional: CAN, ETHERNET, USB
  Input parameter
  Input phase number	Three phase three wire+PE
  Input voltage range	323V～437V(L-L)
  Input frequency range	45～55Hz
  Input power factor	＞0.99
  Input harmonics	≤3%
  Switching time	≤10ms(+90%load～-90%load)
  Work environment
  Working temperature	0～40℃
  Operating humidity	10～90%RH(no condensing)
  Volume weight
  Size(W×H×Dmm)	1000×2000×1000			1500×2000×1200
  Weight(Kg)	1100	1150	1200	1750	1800	1900
