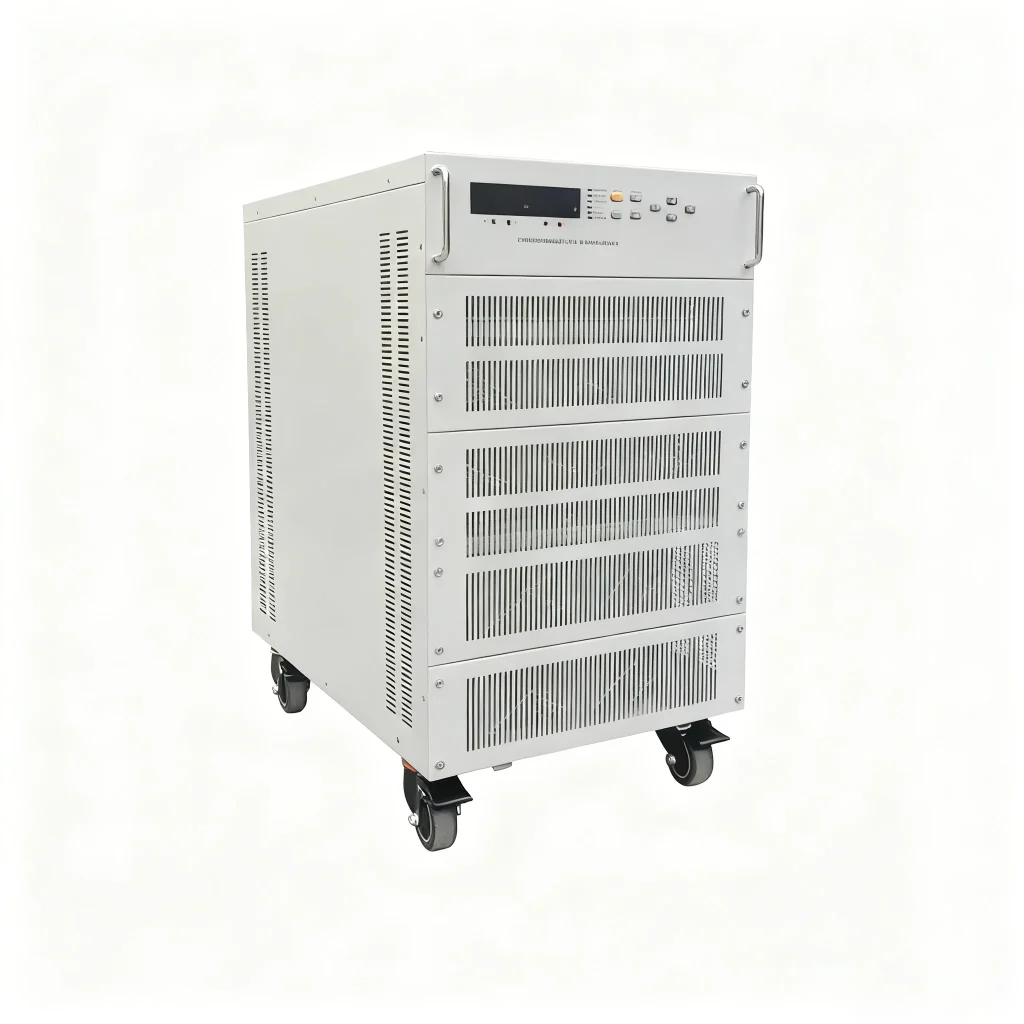

ACME Series DC Stabilized Power Supply
The ACME series DC power supply integrates advanced international technology with high-precision control. Featuring soft-switching inverter technology, IGBT core devices, and amorphous magnetic cores, it delivers stable voltage and current with high accuracy.
Key Features:
- High Precision & Low Ripple: Digital control, peak current regulation, and multilevel filters ensure stable output with minimal ripple.
- CV/CC Modes: Automatically switches between constant voltage and constant current, with LED indicators for clear operation status.
- High Efficiency & Reliability: Soft-switching inverter design ensures efficiency >95%, low noise, and high reliability.
- Comprehensive Protection: Includes overvoltage, overcurrent, short-circuit, overheat, and phase loss protection.
- Digital & Remote Control: Full digital programming with LED display; RS485 interface supports MODBUS for multi-device remote monitoring and control.
- Fast Dynamic Response: Transient response <10ms, strong overload capacity, suitable for labs, industrial, and military equipment testing.
- Compact & User-Friendly: Lightweight, low-noise, and easy to operate.
Applications:
Ideal for scientific research labs, universities, industrial and mining enterprises, military electronics, aircraft and radar testing, and production-line product testing.
Technical Highlights:
- Input: Single phase 220V ±15%, Three phase 380V ±15%, 47–63Hz
- Output: CV & CC, 0–100% rated voltage/current adjustable
- Efficiency: >90% at full load
- Display: 4-digit LED voltmeter/ammeter
- Protection: Overload, overheat, short-circuit, overvoltage/current, phase loss
- Cooling: Forced fan
- Insulation: AC 2500–3000V, leakage <10mA
Output Terminals: Two modes: fast terminal and junction board for flexible usage.
