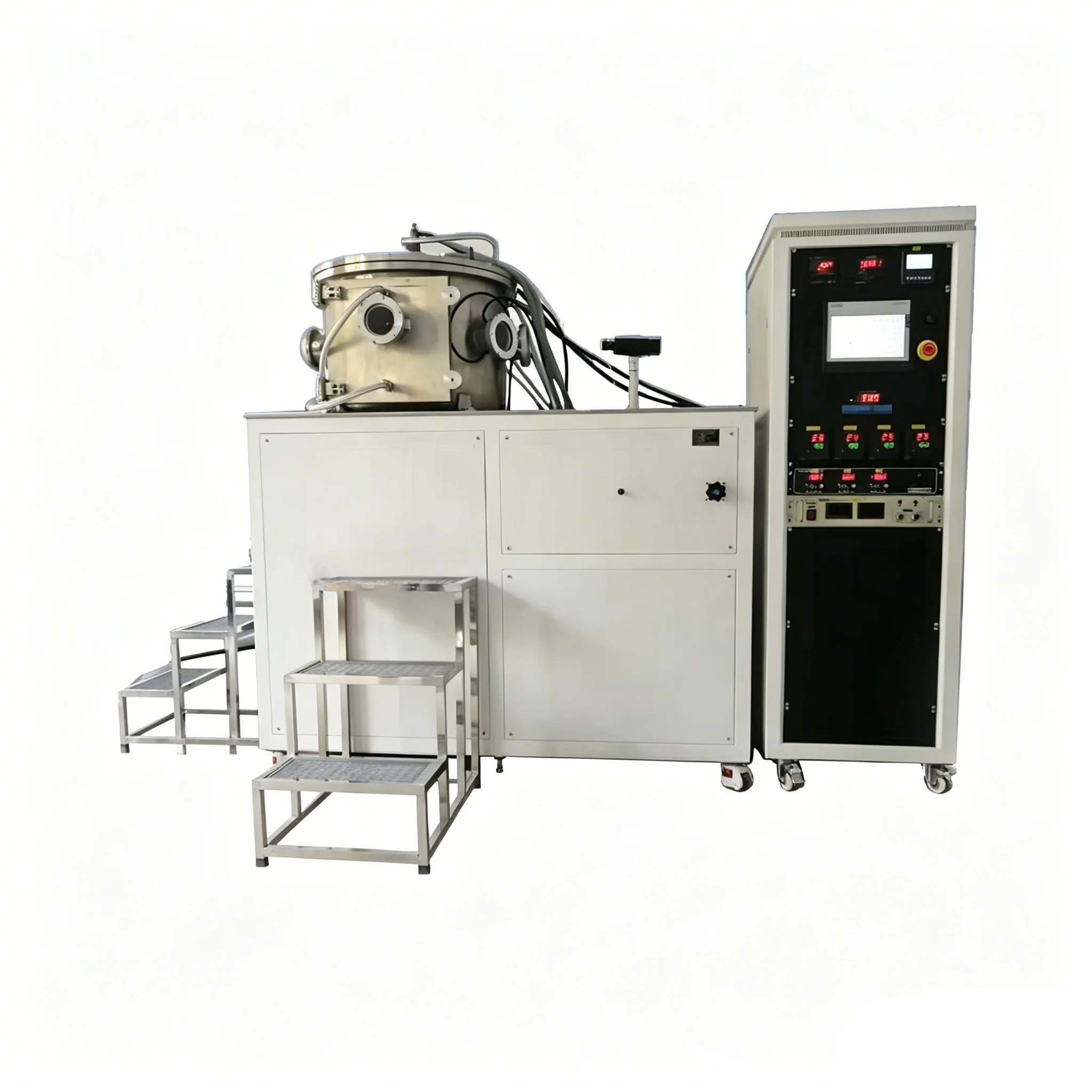

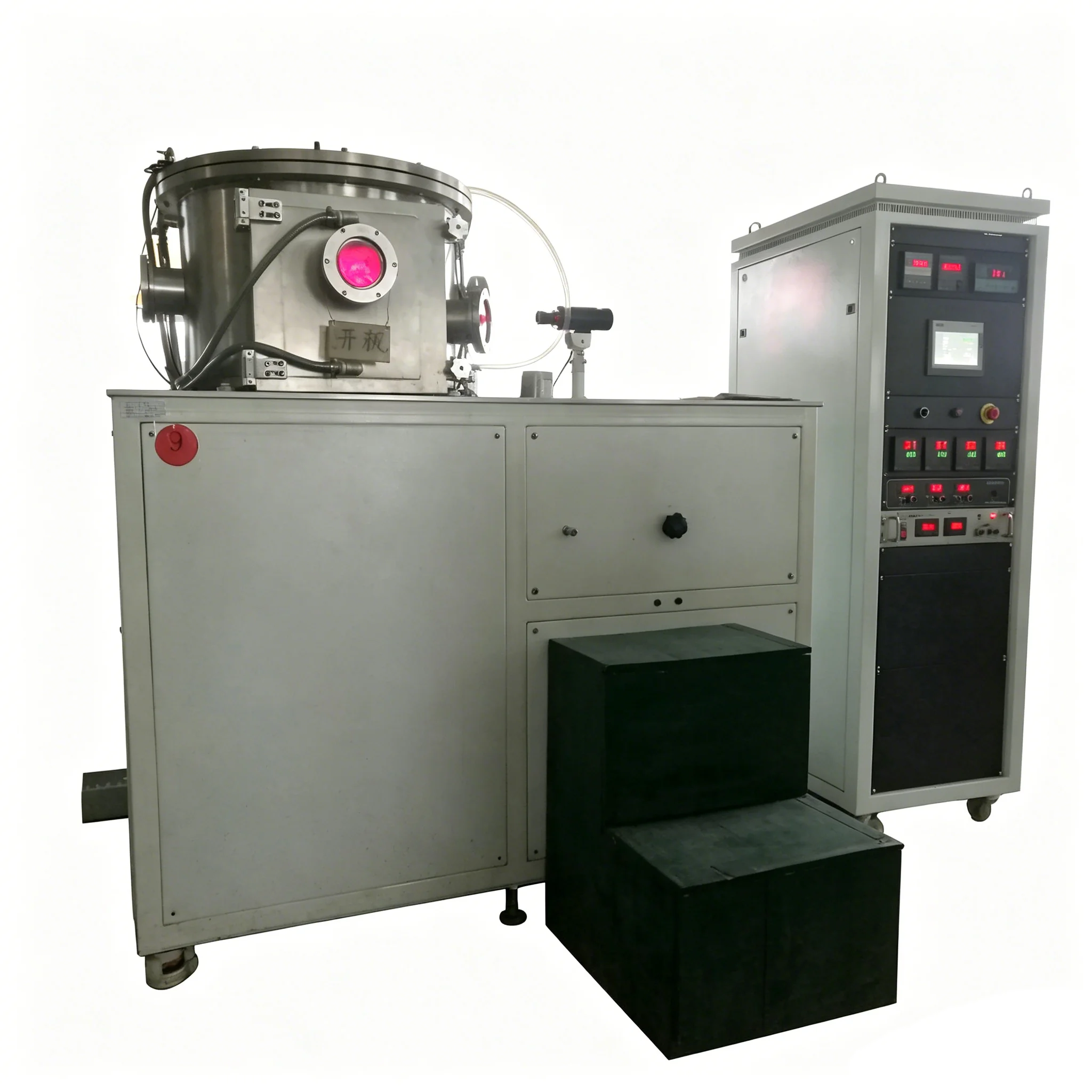

DC plasma Jet CVD equipment

Product Summary

This equipment is primarily used for developing high-quality, large-area diamond thick film products, mainly for industrial applications such as grinding wheel dressing tool blanks, wire drawing die core blanks, optical windows, and heat dissipation substrates. This series of equipment is widely used in teaching and research experiments in universities and research institutes, as well as in early-stage exploratory experiments and the development of high-quality diamond thick film products in technology-based manufacturing enterprises.

Product Introduction

Equipment Features:

★PLC + Touchscreen interface with comprehensive logic interlock protection function

★Infrared thermometer fixing device installed on the top of the frame, fixing the thermometer position and facilitating easy lifting and lowering

★This equipment can successfully prepare large-area, high-quality diamond films with diameters up to φ85mm and thicknesses of 0.1-4mm.

Equipment Parameters:

★Vacuum Chamber: Cylindrical fixed vacuum chamber, approximately Ф400mm×H500mm/Ф650mm×H500mm

★Growth Stage: Deposition stage 80mm, height 110mm/Deposition stage 100mm, height 110mm

★Pumping Speed: From atmospheric pressure to 1Pa ≤ 20min
