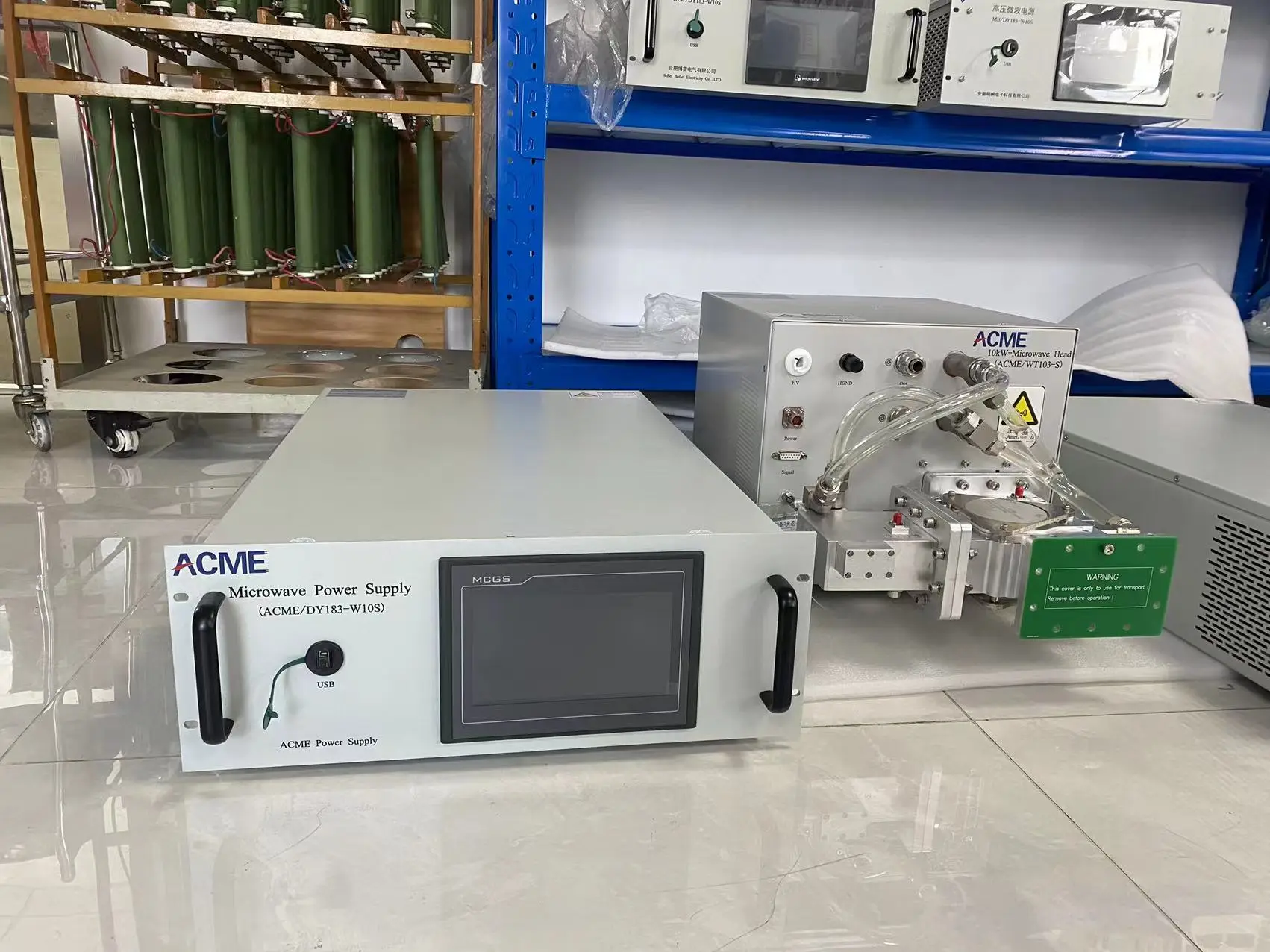

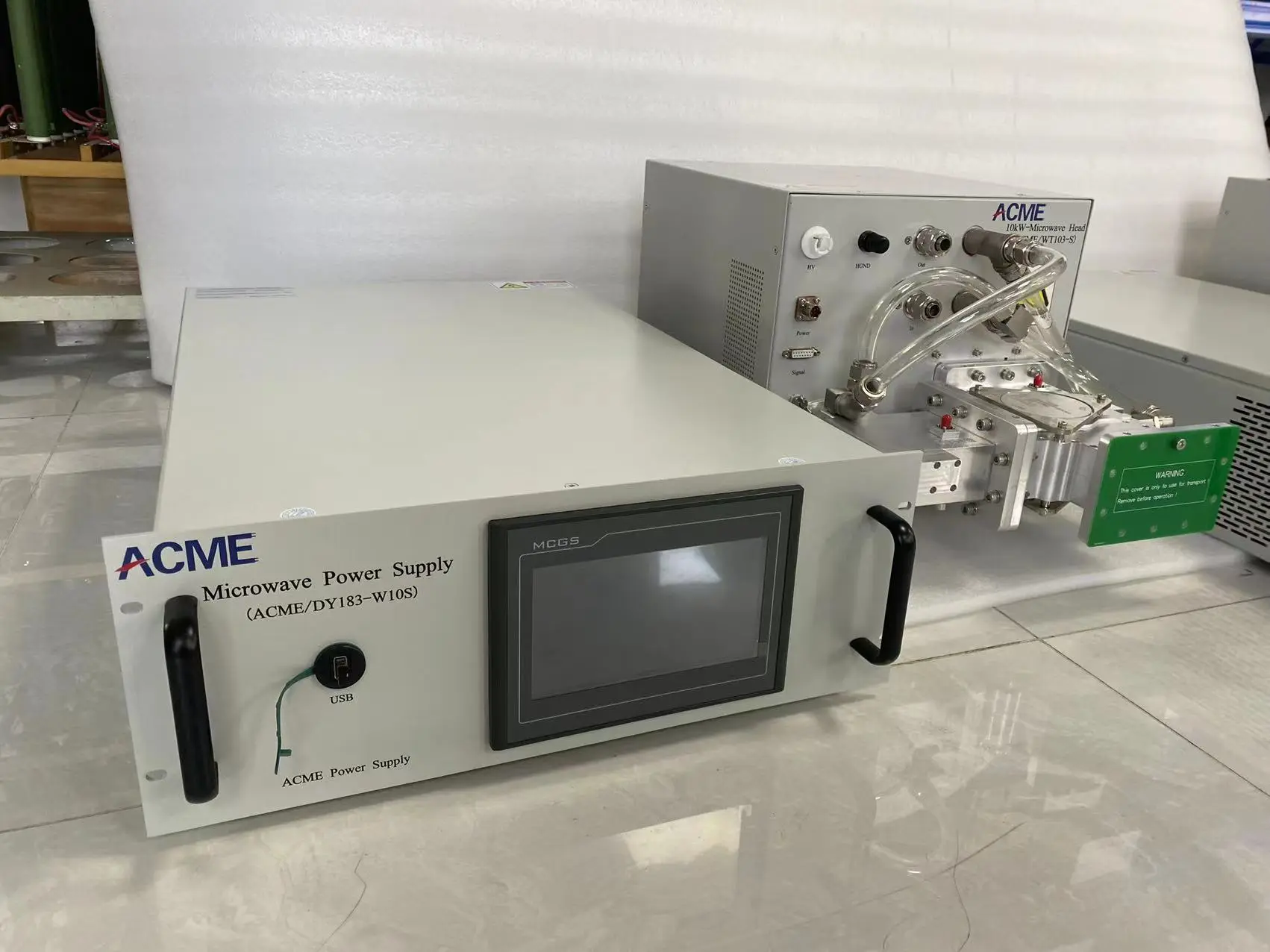

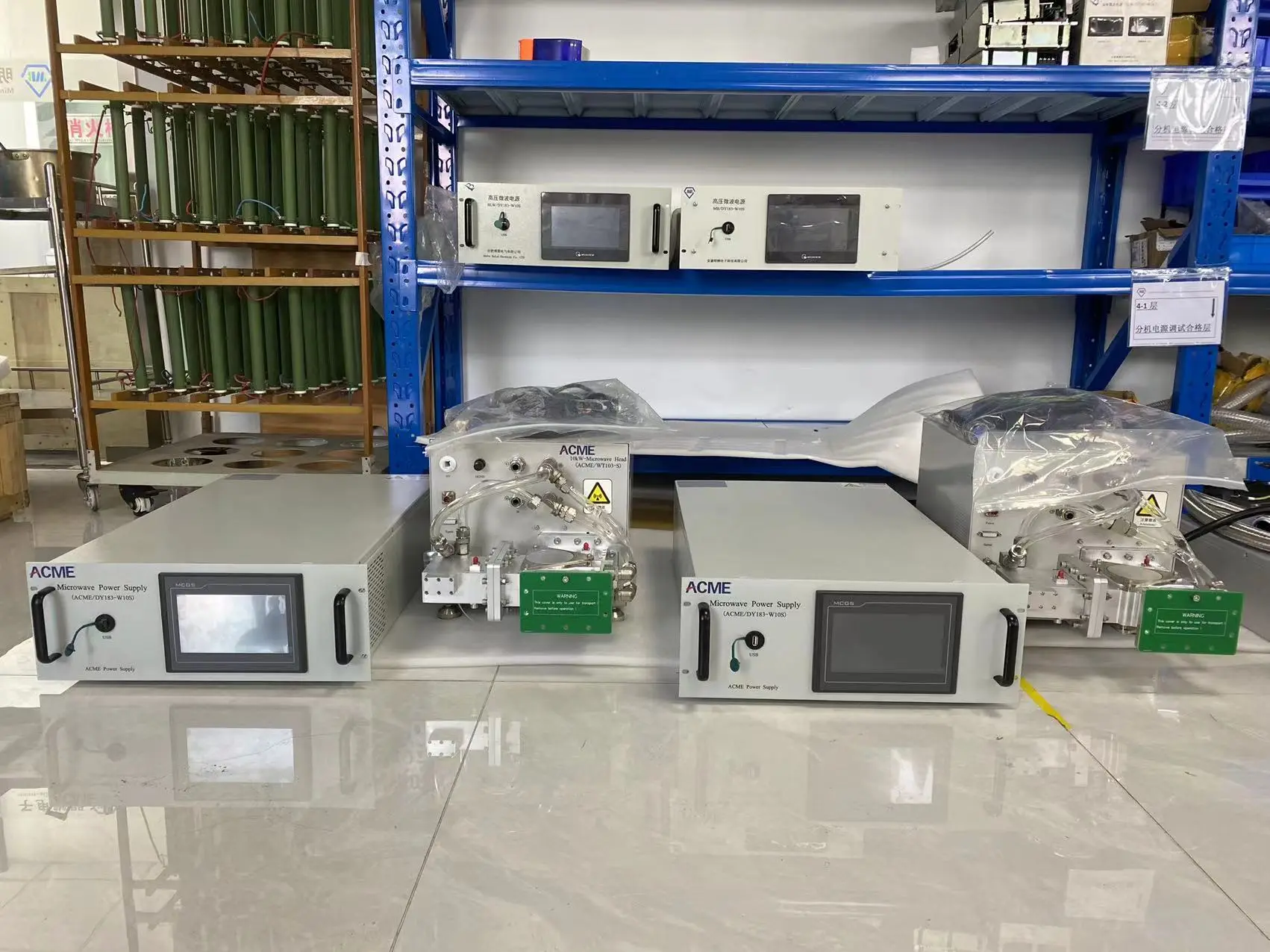

10kW Microwave Generator
The 10kW microwave power supply delivers stable high-frequency energy with precise power control and high efficiency. Designed for industrial heating, plasma generation, and scientific applications, it provides reliable continuous operation with comprehensive protection features.
Product Description
Product Model: ACME/WF103-S
Microwave Output Power: 500W~10kW continuously adjustable
Operating Stability: Better than 0.5%
Spectrum Width: Approx. 1.5MHz
Microwave Frequency: 2450MHz±15MHz
Microwave Output Interface: BJ22 or BJ26 optional
Magnetron: CK619
Control Method: Local control/Communication
Cooling Method: Water cooling
Dimensions (W*D*H):
High-Frequency Switching Power Supply: 482mm*680mm*177mm
Microwave Head (including Circulator): 370mm*570mm*292mm
